How to build a passive house using a prefabricated panel system

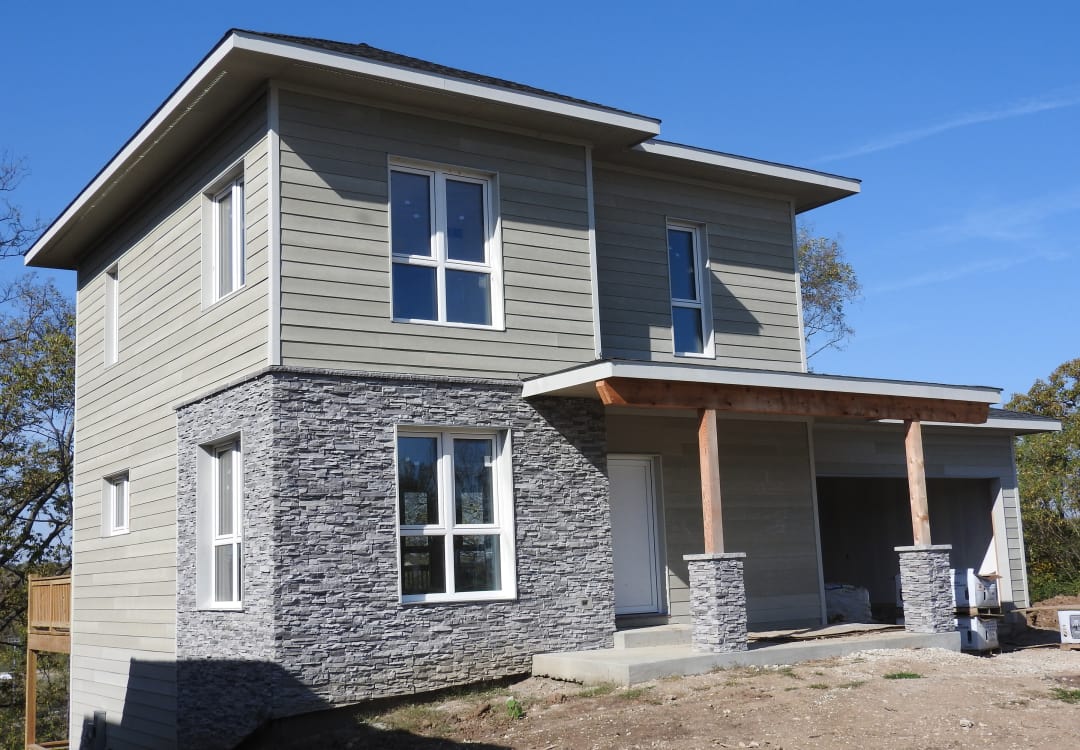

Mission Cliffs passive house

A principal at a Kansas City firm provides a step-by-step overview of their passive house project

As energy consumption and building performance become of more concern to design professionals and the public at large, architects and contractors must address the evolving baseline criteria established by building codes and more stringent requirements for passive house and net zero buildings. This article focuses on one such measure, the passive house standard, and the means by which to achieve a high-performing speculative home through a prefabricated panelized system.

Currently, there is no program of adoption for the passive house standard by anyone other than architects, builders, and consultants. Some state affordable housing agencies have adopted the standard as part of their point system for awarding projects, while others are considering it.

Ironically, in regards to our passive house project known as Mission Cliffs, the level of concern or demand for a high-performance speculative home of this type is relatively nonexistent. Located in the Kansas City metropolitan area (Climate Zone 4), where the cost of construction and energy is relatively low, this project aims to raise the standard for performance in the local residential marketplace.

Most of the surrounding city codes are not progressive, with many actually below the 2012 IECC requirements. In addition, both Kansas and Missouri are two of the few states without state-wide energy codes. This is why the risk taken by the general contractor Prairie Design Build to provide a better performing, durable, and resilient home should be commended.

Typically, passive house residential structures are built for a single client interested in a more energy efficient and durable home with virtually allergen-free air. Due to the increased costs for initial construction—which can be as much as 20 percent in this market—the impact into the residential marketplace has been at a minimum. These homes can also be more complicated to design, detail, and construct than your average home, which contribute to their lack of availability in the marketplace. Unless thoroughly evaluated during the construction process for proper air sealing, meeting the passive house requirement for air tightness of 0.6 ACH50 is not an easy task. While verification is required through a blower door test, it is far more complicated to remediate a home for air tightness after it has been erected improperly than it is to be diligent during the design and construction process and ensure that all of the systems are continuous and properly connected and sealed.

The most important aspect of the Build SMART panels system is that the doors and windows come pre-installed and air-tightened.

Build SMART, the manufacturer of a prefabricated high-performance panel system, aims to simplify the design and construction process while also reducing the added expense associated with this type of structure. Their panel system allows the architect to organize and maintain the boundary layers that comprise the exterior envelope to ensure that the wall system has a clear and continuous air, water, and thermal barrier.

The prefabricated panels for Mission Cliffs were comprised of a two-by-four structural wood frame (Lamco finger-jointed engineered lumber), with 7/16-inch OSB sheathing as the air barrier layer, 5-1/2 inches of expanded polystyrene foam as the thermal layer, and another layer of 7/16 inch-Zip System OSB wall sheathing serving as the nail base and exterior water barrier. Additional insulation was added between the two-by-four framing members, giving the wall a “nominal” R-value of R-23 for the EPS and R-15 for the cavity wall (R-38 in total). This is substantial compared to most speculative home construction, which by code—depending who has jurisdiction—can be as low as a “nominal” R-value of R-13.

For this project, the general contractor did not choose to implement Build SMART's insulated precast panels for the basement level, which are currently only available in the eastern third of the United States. Instead, they chose to construct a modified conventional residential foundation. This system requires two layers of expanded polystyrene foam insulation laid in a staggered formation below the entire slab. The R-value for this assembly is R-16 for the entire slab, whereas typical building code requires R-10 for only the first two feet of the perimeter. The insulation was also rated to 15 pounds per square inch at the slab and intermediate footing.

We are conservatively estimating a home that is 60 percent more energy efficient than a home constructed in 2006, and 90 percent more efficient than the typical resale home.

It is also important to note that any penetrations in the insulation for items such as plumbing are also sealed with spray foam. Where possible, providing anchorage to the foundation wall reduces the amount of movement at the penetration, prolonging the life of the seal.

Another important design consideration is how to treat the slab edge as it abuts the foundation wall. In most residential construction the slab, footing and foundation wall all abut each other without a thermal break. In this case, 4 inches of insulation rated to 40 pounds per square inch was used to separate the slab and to ensure that it would not crush under thermal expansion and/or movement of the slab.

Once the foam was installed, a more robust 15-millimeter vapor barrier (6 millimeters is required by code) was installed over the insulation and sealed to the foundation wall with adhesive tape. All joints, seams, and punctures in the barrier were sealed with tape. Once this was completed, the rebar and radiant floor system were installed. The slab was then poured, troweled, and finished.

The rebar and radiant floor system are installed over the vapor barrier.

The interior wall of the foundation would later be clad with 4 inches of EPS (R-16) directly to the inside face and taped to be continuous. A 3-1/2-inch interior finish wall with batt insulation (R-13) would then be installed in the cavity for a “nominal” total of R-29. Ideally the insulation would be on the outside face of the foundation wall, but there were concerns about its long-term durability and potential for damage during construction.

Once the foundation was complete, the installation of the floor framing could commence. A key component not readily used in typical construction is a heavy-duty EPDM sill plate gasket. These structural gaskets are designed to seal under heavy loads; since they are effective moisture barriers, they eliminate the need for damp proofing between wood and concrete foundations.

Once the floor framing and decking was installed, a prefabricated rim-joist panel was installed and sealed between panels. From there, the prefabricated wall panels—which come in 1-foot, 2-foot, 3-foot, 4-foot, 6-foot, or 8-foot widths and either 8-foot or 9-foot heights—are lifted into place. Nine foot panels were selected for this project.

Benchmarking and climate studies will help the team to identify the energy conservation measures and set target goals. This effort can be initiated during an eco-charrette where the design team—including the energy modeler, client, and users—are represented. As the standard for all LEED projects, ASHRAE 90.1 is a good starting place for understanding baseline goals.

Perhaps the most important aspect of the Build SMART panels system is that the doors and windows come pre-installed and air-tightened. Each triple-paned Klearwall PassiV Future Proof window has been certified as a passive house-suitable component by the Passivhaus Institut in Germany. The window opening is prepped with Prosoco R-Guard FastFlash fluid-applied flashing, ready to receive the high-efficiency window. The window is then sealed on the inside with Prosoco R-Guard AirDam for a ready-tight seal. This system is designed to withstand the 155-mph wind-driven rain of a Category 5 hurricane, as well as to facilitate passing of the 0.6 ACH50 passive house air leakage blower door test.

Since window openings are the most difficult areas in terms of air and water tightness, the pre-installed window panels eliminate a lot of the headache of tracking and resolving leaks.

As the panel installation progresses, a key component is to seal each panel together and to the decking. This process starts with the base, where Prosoco R-Guard Joint and Seam Filler is applied at the inner OSB air barrier layer. The sealant is then applied vertically up the adjacent panel, allowing for a continuous seal of the OSB. Zip System Liquid Flash, which is very similar to Prosoco R-Guard FastFlash, is used in the manufacturing process to seal the two layers of OSB and insulation together to eliminate the risk of moisture infiltration.

Spray foam was then applied to the EPS to allow it to bond to the next panel, although this is not called out in Build SMART's manual. Each panel joint was then taped using Zip System Tape. Zip System also offers a fluid-applied sealing system, similar to the R-Guard FastFlash, used by Build SMART in the rough openings.

Once all of the wall panels are installed, just a few pieces remain to complete the roof and continuous air barrier system. The key design component here is the raised heel truss. This truss design allows the contractor to maximize the depth of the roofing insulation at the soffit, which is generally minimized and results in the formation of ice dams. In this case, 20 inches of cellulose or R-75 (compared to the code-required R-49) will be placed in the entire attic space of the home. Build SMART supplies a special rim panel that extends to the top chord of the truss, allowing just enough room for the insulation baffles.

This truss design allows the contractor to maximize the depth of the roofing insulation at the soffit.

Finally, to complete the envelope, it should be noted that a piece of 7/16-inch Zip System wall panel was placed and sealed on top of the wall for the heel truss to rest on. This allows for additional wall panels to be secured to the bottom of under the roof truss chords to provide a continuous and robust air barrier. To reduce the amount of penetrations, a furred-out finish ceiling will be provided to accommodate any ceiling light fixtures.

In summary, there were two homes built side-by-side. Each home was blower-door tested and the first proved tighter than the second, 160 CFM to 281 CFM. Both are among the tightest homes in the city. In conversations with Build SMART, the general contractor indicated they expect use of the panels to accelerate across the country and that they are going to implement their use on all projects to save costs. They expect that the panels will shave about two months off the construction schedule, significantly reduce weather delay, reduce project management and security costs, and more than compensate for the labor shortage.

When asked about costs, Build SMART points to a 49-unit multi-family project nearing completion in Philadelphia. In the affordable housing program of which it is a part, the projects stick-built to code averaged $165 per square foot, including site work. The corresponding number for the Whitehall passive house project was $153 per square foot; the project passed their blower-door test on the first try.

The homes are not occupied, and no data has been recorded as to their performance. However, Passive House Institute US estimates a HERS rating from the low 40s to 20s, depending on the climate zone. Therefore, according to the HERS Index, we are conservatively estimating a home that is 60 percent more energy efficient than a home constructed in 2006, and 90 percent more efficient than the typical resale home.

This article originally ran in the December 2016 issue of Technique, the e-newsletter for AIA's Building Performance Knowledge Community.

David Herron, AIA, is principal at herron + partners. He also served as the architect of record for this project.
